24GHz High-Precision Millimeter-Wave Radar Monitoring and AlarmSystem PWAS

Description

Introducing our cutting-edge 24GHz High-Precision Millimeter-Wave Radar Monitoring and Alarm System. This advanced system combines IP69 waterproof rating, integrated wireless transmission, and HD night vision capabilities to provide unparalleled monitoring and security solutions. Designed to meet the highest standards of precision and reliability, our system is perfect for a wide range of applications, from industrial safety to public security.

Send A Inquiry

High-Precision Millimeter- Wave Radar

Technical Characteristics

24GHz Millimeter-Wave Radar Technology

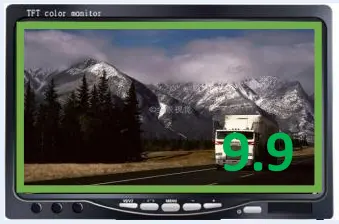

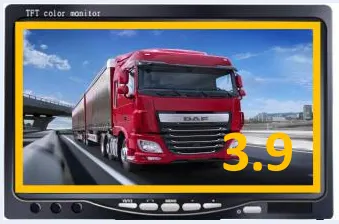

Real-time Measurement and Display ofTarget Object Distance
Three-Level Alarm Mechanism (Green,Yellow, Red)

Advantages

Provides Timely and Intuitive Danger Warnings

Adjustable Distance Alarm

Short Range Alarm

Triggers when object enters 3 meter radius

Medium Range Alarm

Triggers when object enters 6 meter radius

Long Range Alarm

Triggers when object enters 10 meter radius

Alarm distance is fully adjustable to suit your monitoring needs.

Alarm	Level Threshold (M)
L4	10	6	3
L3	8	5	3
L2	5	3	2
L1	3	2	1
L1	bi—-bi—-bi—-bi	bi–bi–bi–bi	bibibibi

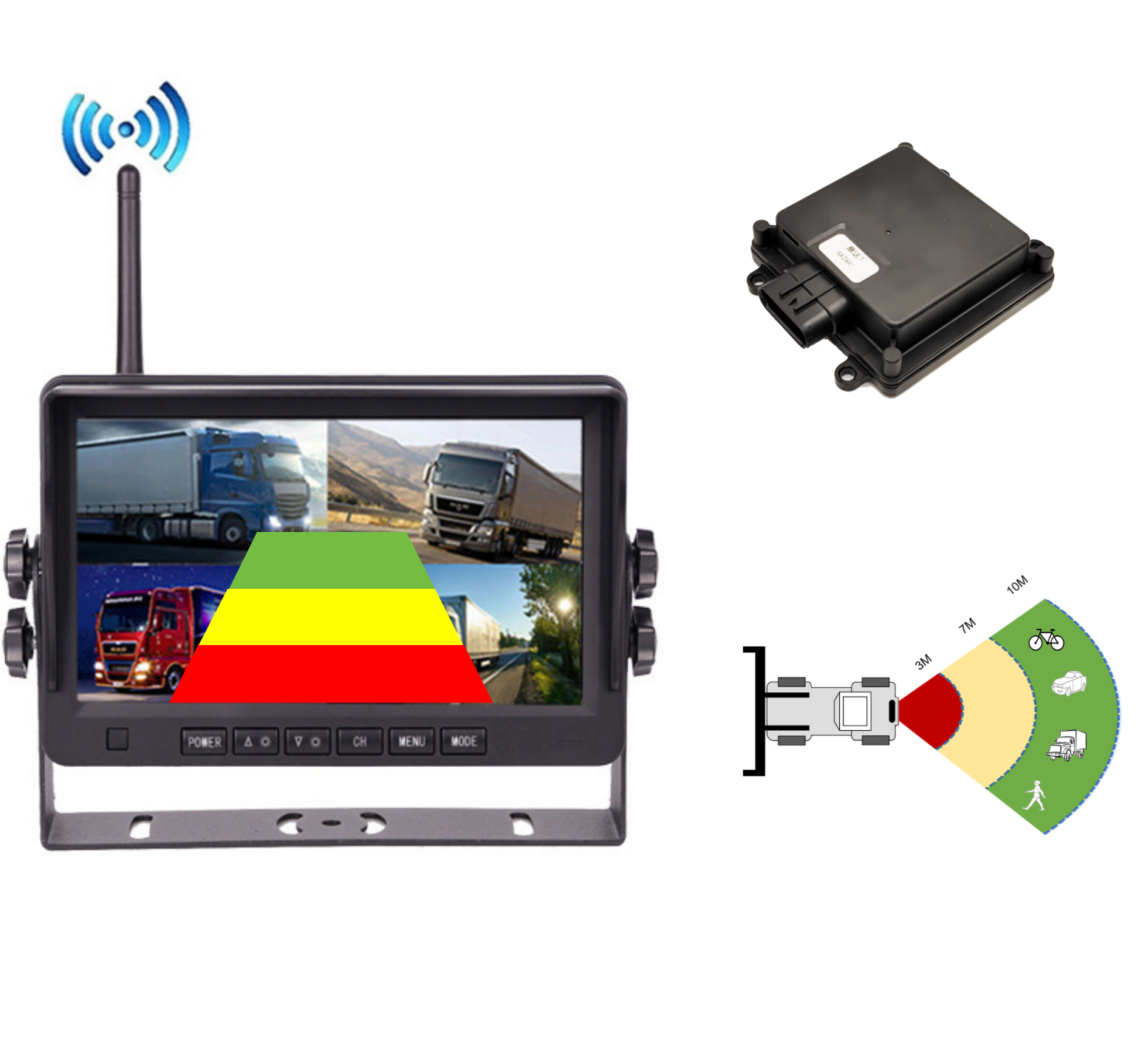

The innovative combination of millimeter-wave radar andcamera

Complementary Perception

The integration achieves precise measurements of physical parameters like distance, speed, and direction, along with rich visual information, enhancing the system’s overall perception capabilities.

High-Stability Transmission

Utilizing advanced wireless communication technologies ensures stable data transmission in complex environments, reducing signal interference and loss.

Elimination of Wiring Hassles

Wireless connection eliminates the challenges associated with traditional wired systems, reducing installation costs and time while increasing system flexibility and scalability.

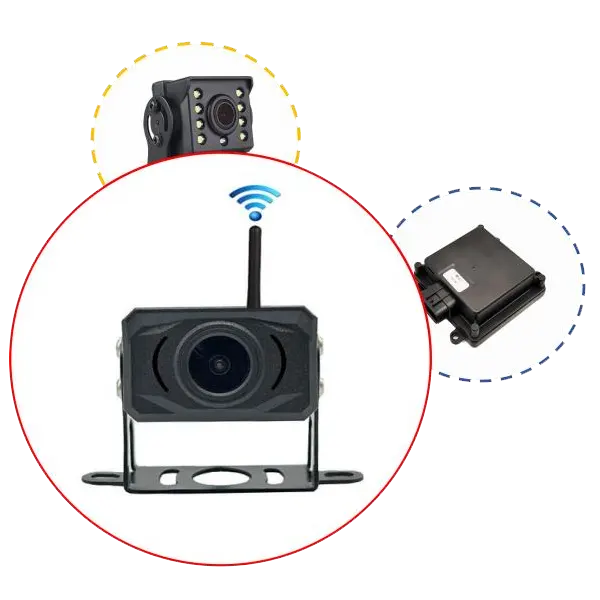

HD Wide-Angle Camera

Technical Specifications:
2 Megapixel HD Camera, 120° Ultra-Wide-Angle Field of View

No-Light Night Vision Technology

Technical Characteristics:
Advanced No-Light NightVision Technology

IP69 Waterproof Camera

Waterproof Camera Ensures Reliable
All-Weather Monitoring

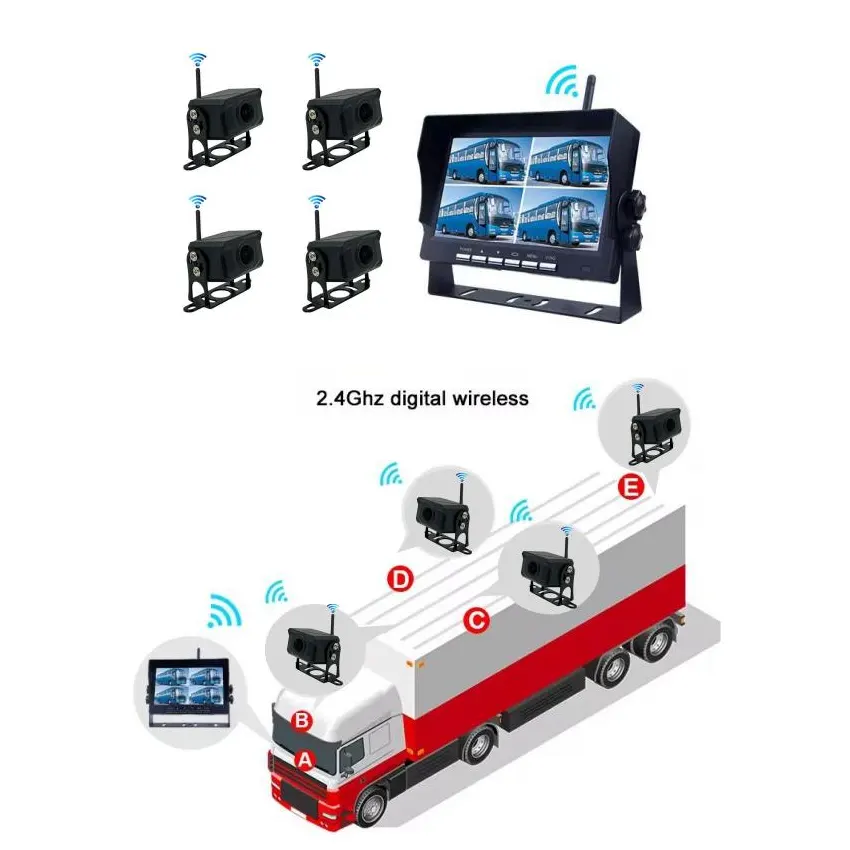

Integrated Wireless Transmission

Wireless Technology

Wireless Transmission between Camera and Display

Transmission Range

Transmission Distance Exceeding 100 Meters, Effective Penetration of Obstacles

Key Advantages

Eliminates Wired Constraints, Ensures Stable Signal Transmission with No Interruptions

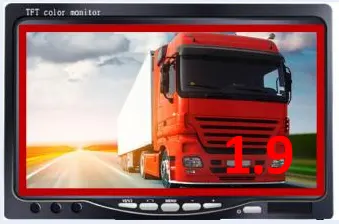

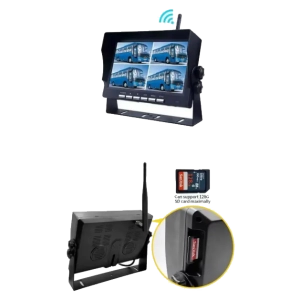

7-Inch 4K Display Panel

Our 7-inch 4K display panel offers exceptional visual clarity and detail. With a 128GB storage capacity, it can record and store high-quality video footage, ensuring non-stop monitoring and recording even in the most demanding environments.

The panel’s circular loop recording feature ensures seamless, continuous recording without interruption, providing a comprehensive visual record at all times.

It supports 3.3V I/O output, enabling compatibilitywithawiderange of devices such as audible and visual alarms, warninglights, and vibrating cushions, ect.

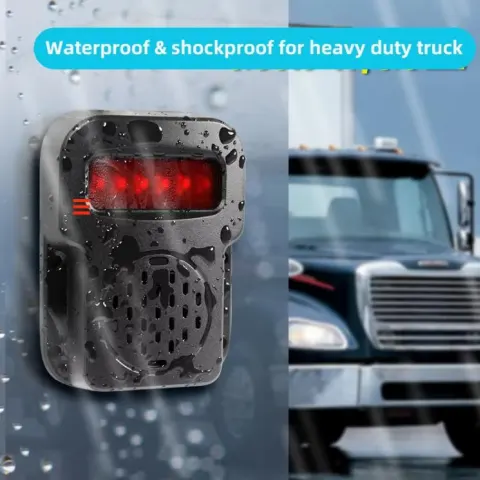

Product Name	Audible and visible alarm
Material	Aluminum alloy metal
Waterproof Grade	IP67
Input Voltage	12-32v
Speaker	5w
System Power	Less than 6w
Light Type	Red flashing
Product Size	128984.5mm
Application	Truck, Tanker, Bus, School bus, Lorry, etc.

Application Scenarios

Industrial Safety

Safeguard high-risk facilities like chemical plants, mines, and oil depots.

Traffic Monitoring

Enhance safety on critical road sections such as intersections, tunnels, and bridges. Public Safety Secure crowded public spaces, including airports, train stations, and town squares.

Public Safety

Secure crowded public spaces, including airports, train stations, and town squares.

Other Applications

Enhance monitoring and security in ports, warehouses, and industrial parks.

Technical Specifications

Technology	24GHz Millimeter-Wave Radar
Display	7-Inch 4K Panel
Transmission	Wireless Integration
Features	Adjustable Distance Alarm, NightVision Camera
Power Supply	+9V~50V
Current Consumption	130mA (Typ.) @12V
Operating Temperature	-20℃~+70 ºC
Storing Temperature	-40℃~+80 ºC
Operating Humidity	85%RH
Frequency Range	2.4GHz~2.4835GHz
Output Power	TX Power = 23dBm±1dBm

Conclusion and Outlook

Current Capabilities

Our 24GHz High-Precision Millimeter-Wave Radar Monitoring and Alarm System offers state-of-the-art technology for various monitoring needs.

Versatile Applications

From industrial safety to public security, our system adapts to diverse scenarios, providing reliable monitoring solutions.

Future Developments

We continue to innovate, focusing on enhancing precision, expanding wireless capabilities, and integrating AI for even more intelligent monitoring solutions.
